8KN Cable Pulling Machine with 10-190mm Cable Diameter Capacity

Name: 8KN Cable Pulling Machine with 10-190mm Cable Diameter Capacity
Brand: Changshu Xinya Machinery Manufacturing Co., Ltd.
SKU: GSS-3Z
Price: 1,500.00 USD
Availability: InStock

Marchio:	XINYA
Numero modello:	GSS-3Z
Moq:	1
prezzo:	USD1000-USD2000
Tempi di consegna:	7-15 giorni
Termini di pagamento:	L/C, T/T, Western Union

Informazioni Dettagliate

Descrizione del prodotto

Informazioni Dettagliate

Luogo di origine:

Jiangsu, Cina

Line che tira:

8KN

Diametro del cavo:

10-190 mm

Estrarre la velocità:

6m/min (può personalizzare)

Motore elettrico:

1.1kwx2pcs

Dimensione oversize:

1100 × 580 × 500mm

Peso:

135kgs

MORSETTO:

non più di 2,7kn

Imballaggi particolari:

Cassa in legno

Evidenziare:

cable pulling machine 8KN capacity

cable turning conveyor winch puller

cable winch puller with conveyor

Descrizione del prodotto

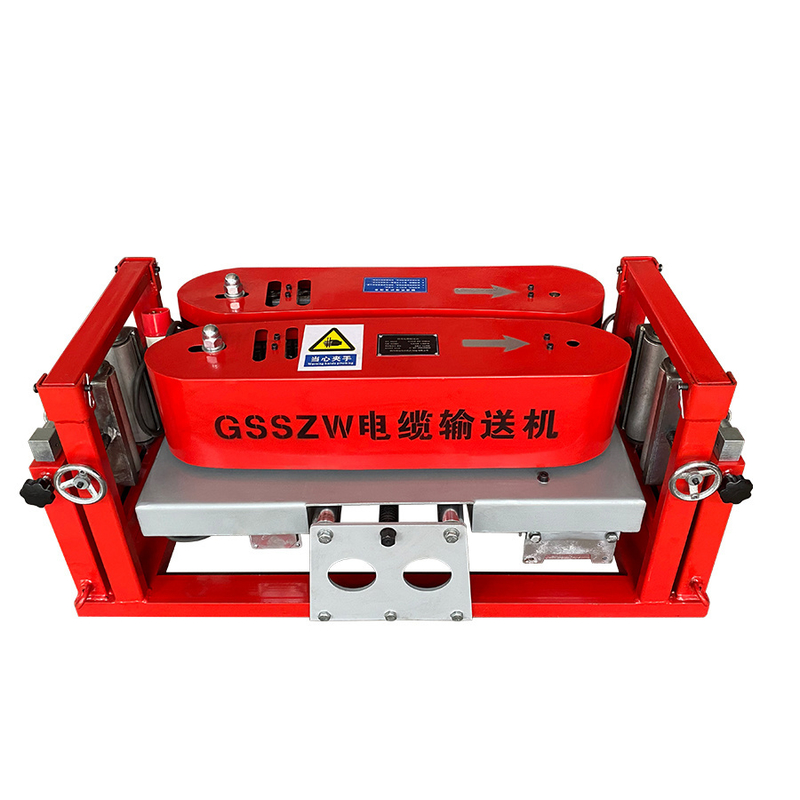

GSSZW Cable Pulling Machine Cable Turing Conveyor For Turning With 8KN Pulling Force

The GSSZW Cable Pulling Machine is a specialized mechanical equipment designed for power, communication, and optical cable laying operations. It features turning capability for complex terrain scenarios requiring directional changes during installation.

Key Features

Turning Capability: Special design guides cables smoothly along preset paths to prevent bending damage
Powerful Transmission: Provides continuous traction for long-distance, large-section cable laying
Flexible Operation: Can operate as a single unit or synchronize multiple machines via control box

Key Advantages

Enhanced Speed Design: Optimized drive system achieves 35 meters/min (adjustable), reducing construction time by 30%+
Rapid Deployment: Plug-and-play functionality for emergency engineering needs
Precision Control: Digital inverter enables stepless speed regulation with seamless mode switching
Multi-Machine Sync: Coordinated speed regulation maintains tension balance during long-distance laying
Advanced Conveying: High wear-resistant composite track with non-slip bump design for bidirectional operation

Product Overview

Double-track transmission system ensures stable traction for various cable specifications
Wear-resistant rubber conveyor belt/track with non-slip surface provides superior grip
Modular design supports multiple unit operation for ultra-long distance installations

Technical Specifications

Item	Value
Model	GSSZW
Power	Electric engine 1.1KWx2 380V 3-phase
Cable Diameter	10-190mm
Dimension	1100580500mm
Pulling Speed	6m/min (customizable)
Clamp	≤2.7KN
Pulling Force	8KN
Weight	135kg
