GSS-2ZP Cable Pulling Machine 600 KGS Capacity 10-180mm Diameter

Name: GSS-2ZP Cable Pulling Machine 600 KGS Capacity 10-180mm Diameter
Brand: Changshu Xinya Machinery Manufacturing Co., Ltd.
SKU: GSS-2ZP
Price: 1,500.00 USD
Availability: InStock

Marchio:	XINYA
Numero modello:	GSS-2ZP
Moq:	1
prezzo:	USD1000-USD2000
Tempi di consegna:	7-15 giorni
Termini di pagamento:	L/C, T/T, Western Union

Informazioni Dettagliate

Descrizione del prodotto

Informazioni Dettagliate

Luogo di origine:

Jiangsu, Cina

Line che tira:

600 CHILOGRAMMI

Diametro del cavo:

10-180mm

Estrarre la velocità:

0-26 m/min

Motore elettrico:

3KW

Dimensione oversize:

980x530x480mm

Peso:

140 chilogrammi

MORSETTO:

non più di 2,7kn

Imballaggi particolari:

Cassa in legno

Evidenziare:

600 kgs cable pulling machine

cable winch puller 10-180mm diameter

GSS-2ZP cable puller with warranty

Descrizione del prodotto

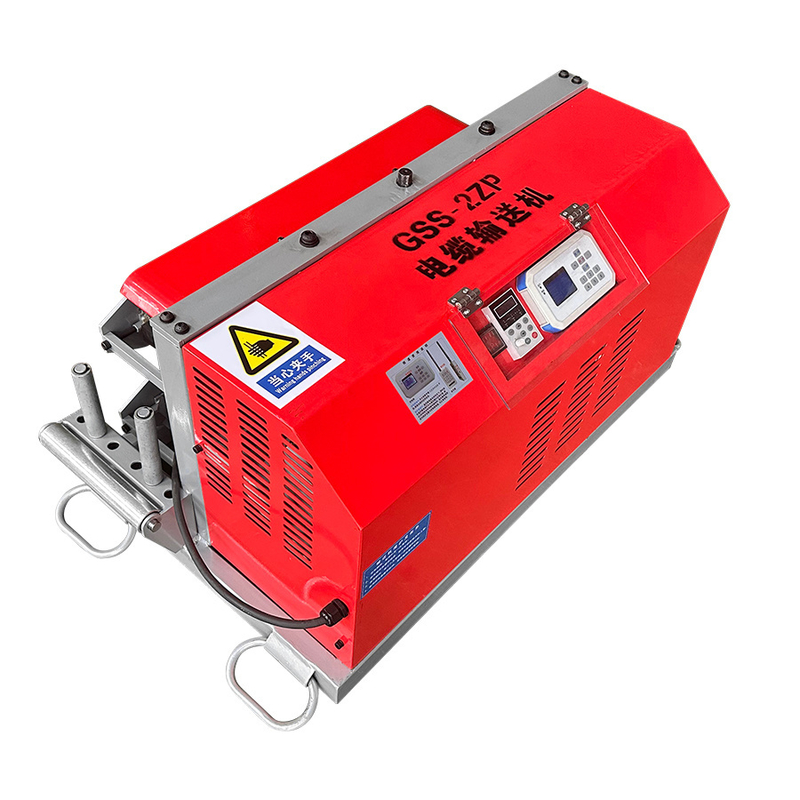

Intelligent Cable Pulling Machine Cable Conveyor for Underground Electrical Laying Model GSS-2ZP

The GSS-2ZP intelligent cable conveyor represents the latest generation of cable laying equipment, designed for efficient long-distance and large-section cable traction and transportation. This machine assists construction teams in safe and productive cable installation, particularly in challenging environments such as tunnels, pipelines, and bridges.

Product Overview

Advanced double-track transmission system ensures stable traction across various cable specifications
Features wear-resistant rubber conveyor belt/track with non-slip surface for superior cable grip
Modular design allows multiple units to operate in series for ultra-long distance installations

Key Features

Compact yet powerful design with excellent thrust capability
Lightweight construction for easy maneuverability in confined spaces
Operates as standalone unit or synchronized with multiple machines via control box
Rubber-cast conveying wheels prevent cable surface damage
Adjustable center distance accommodates various cable diameters (10-180mm)
Double caterpillar drive system protects cable insulation integrity
High-strength DRC caterpillar construction ensures uniform force distribution
Quiet operation with minimal temperature rise during extended use
Engineered for easy maintenance and serviceability

Technical Specifications

Item	Value
Model	GSS-2ZP
Power	Electric engine 3KW 380V 3-phase
Cable Diameter	10-180mm
Dimension	980×530×480mm
Pulling Speed	0-26m/min
Clamp	≤2.7KN
Pulling Force	6KN
Weight	140kg
