estrattore dell'argano del cavo
Created with Pixso. GSS-2ZC Diesel Cable Puller 7000N for 10-180mm Cables

GSS-2ZC Diesel Cable Puller 7000N for 10-180mm Cables

Marchio: XINYA
Numero modello: GSS-3Z
Moq: 1
prezzo: USD1000-USD2000
Tempi di consegna: 7-15 giorni
Termini di pagamento: L/C, T/T, Western Union
Informazioni Dettagliate
Luogo di origine:
Jiangsu, Cina
Line che tira:
7000N
Diametro del cavo:
10-180mm
Estrarre la velocità:
0-26 m/min
Motore elettrico:
1.8kW
Dimensione oversize:
950 × 600 × 600mm
Peso:
140 chilogrammi
MORSETTO:
non più di 2,7kn
Modello:
GSS-2ZC
Imballaggi particolari:
Cassa in legno
Evidenziare:

7000N diesel cable puller

,

cable winch puller for 10-180mm cables

,

GSS-2ZC diesel winch with warranty

Descrizione del prodotto

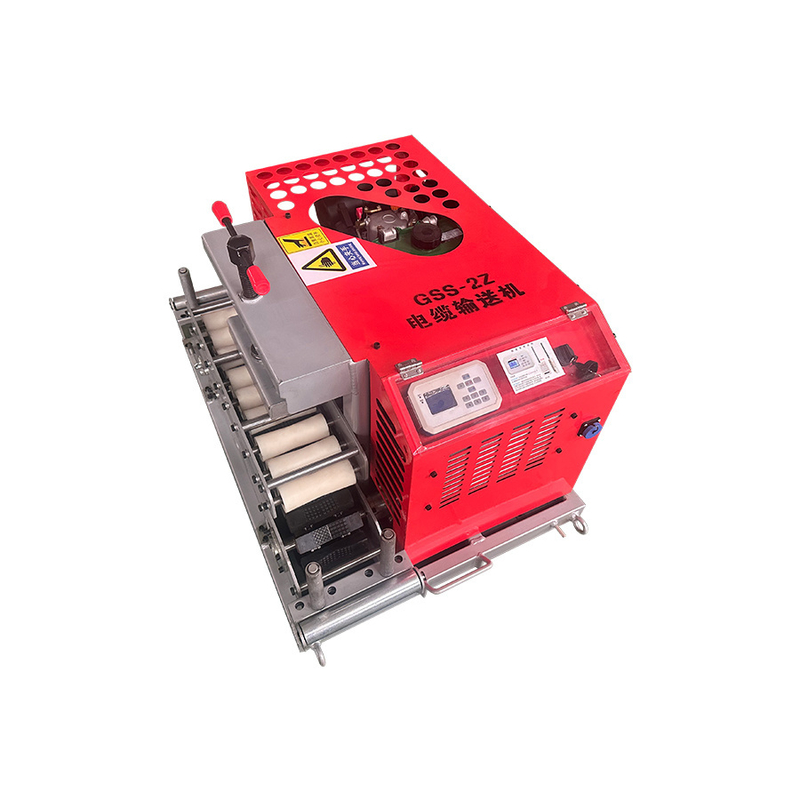

GSS-2ZC Diesel Engine Cable Pulling Machine
7000N Capacity for 10-180mm Cables
Product Description

The GSS-2ZC Diesel Engine Cable Pulling Machine is engineered for efficient cable installation in demanding environments. Its robust construction and intelligent features make it ideal for cable rows, tunnels, and long-distance transportation applications.

Key Components
  • Frame, motor, reducer, and high-strength track system
  • Wear-resistant tire rubber compound track for uniform cable force distribution
  • Integrated controller with remote operation capability (>800m range)
  • Modular design supports single or multiple unit operation
Key Advantages
  • Enhanced Speed Design: 35 meters/min maximum speed (adjustable) reduces construction time by 30%
  • Rapid Deployment: Plug-and-play functionality for emergency engineering needs
  • Precision Control: Digital inverter enables stepless speed regulation with seamless mode switching
  • Multi-Machine Synchronization: Coordinated speed regulation maintains tension balance during long-distance laying
  • Advanced Conveying Module: Bidirectional operation with non-slip bump design for complex path adaptation
Product Overview
  • Double-track transmission system ensures stable traction across cable specifications
  • Wear-resistant rubber conveyor belt/track with superior grip surface
  • Modular design supports ultra-long distance installations
Technical Specifications
Item Value
Model GSS-2ZC
Power Electric engine 1.8KW
Cable Diameter 10-180mm
Dimension 950×600×600mm
Pulling Speed 0-26m/min
Clamp ≤2.7KN
Pulling Force 6KN
Weight 140kg
