Dettagli:
|
| Rated Load: | 10KN | Material: | MC Nylon |
|---|---|---|---|
| Application: | stringing | Type: | Stringing Pulley Block |

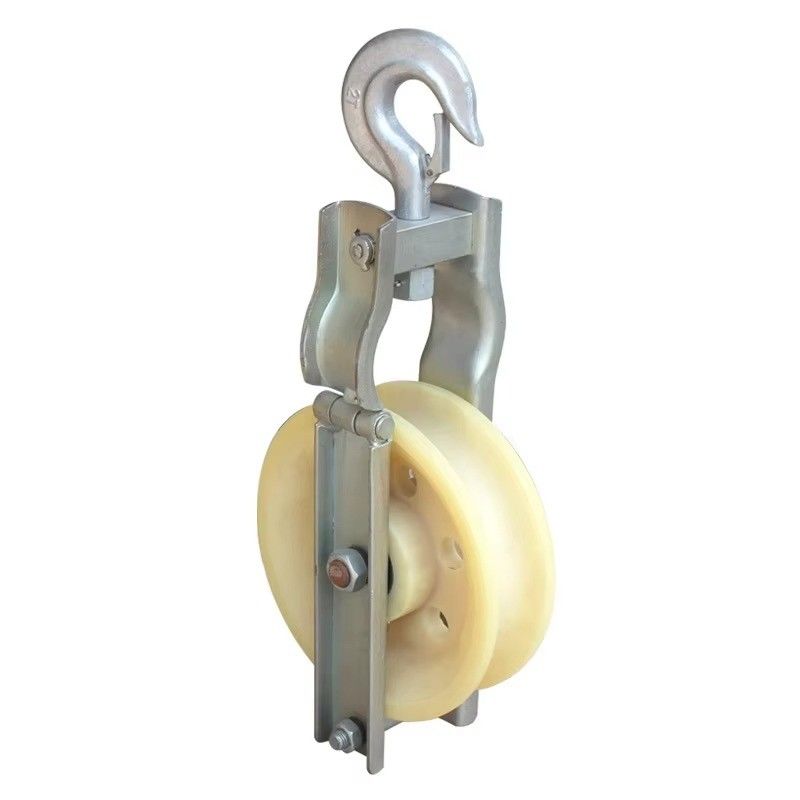

| Usage: | Power construction | Name: | Model SHDN-160x40 Single Sheave Stringing Pulley Block Nylon Roller Hook Type |
| Wheel Size(mm): | 160x40 | Item: | Pulley Block |
| Evidenziare: | Blocco di tesatura a puleggia singola,Stringing Equipment Accessori Stringing Block,Accessori per la stringa |
||
|
Modello
|
Conduttore applicabile ((LGJ)
|
Carico nominale (KN)
|
Peso ((kg)
|
|
|
Ruota di alluminio
|
Ruota di nylon
|
|||
|
SHD-120x30
|
Da 25 a 70
|
5
|
1.8
|
1.5
|
|
SHD-160x40
|
95-120
|
10
|
3.1
|
2.6
|
|
SHD-200x40
|
150-240
|
15
|
3.5
|
2.9
|
|
SHD-200x60
|
150-240
|
15
|
4.3
|
3.3
|
|
SHD-250x40
|
150-240
|
20
|
5.0
|
3.7
|
|
SHD-250x60
|
300-400
|
20
|
6.7
|
5.8
|
|
SHD-270x60
|
300-400
|
20
|
7.0
|
6.2
|
|
SHD-320x60
|
300~400
|
30
|
9.0
|
8.3
|
|
SHD-400x80
|
400-500
|
30
|
12.5
|
11.0
|
